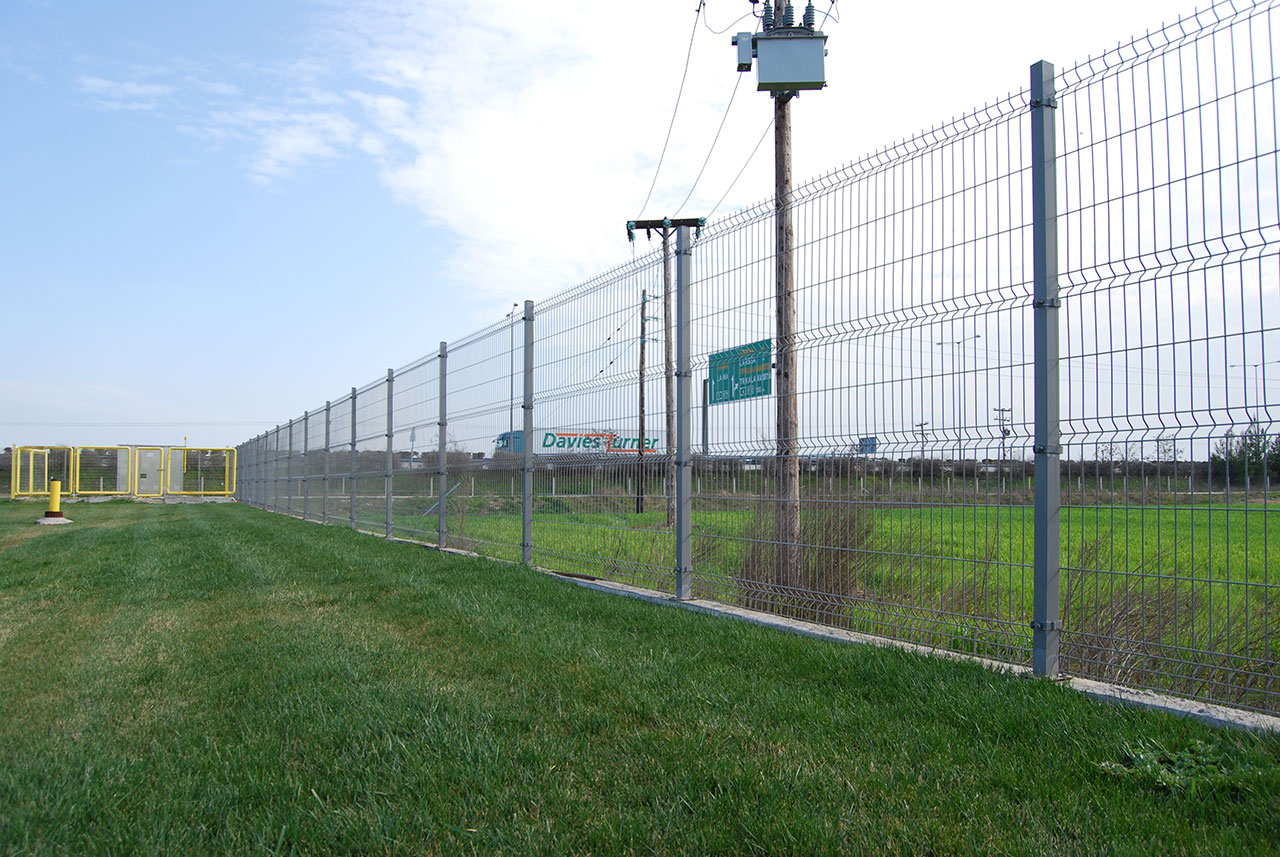

This is a pioneer fencing system consorted with every architectural style. Up to now, several types of chain links as well as railings were providing fencing solutions but with several drawbacks.

It is a modern solution which combines many advantages in terms of materials and installation. It is highly resistant, easy to install and shows great resistance to corrosion.

This is the most integrated fencing solution in the market today.


It is a high quality fencing panel ,with type V braces on its wires, providing strength to the panel. It is protected by zinc coating and powder coating 100 microns. This means zero maintenance costs and durability for a lifetime.

PANELS : Technical Specifications

Height 1,00 m 1,20 m 1,50 m 1,80 m 2,00 m
Length  2,50 m 2,50 m 2,50 m 2,50 m 2,50 m
Braces  2  2 3  4 4
5,00 mm
 Opening 5cm x 19 cm
Wire breaking load 80,000 – 100,000 PSI
Weld-Shear strength 1,051 lbs
Galvanized 0,50 (oz/ft²)
Polyester Thickness 100 microns (4 mils aprox.)
Colours White – Black – Green – Red – Yellow – Blue – Grey – Galvanized


This post comes with zinc coating (0.50 oz/ft2 ) as well as powder coating ( 100 microns ).
The posts of this fencing system come with plastic caps.They cover the top part of the post providing an aesthetic finish and protection against humidity and corrosion. The installation of the posts and the connection of them with the panels is done with metal brackets. Finally the brackets are sealed with galvanized screws and bolts.
Additionally, posts and panels can be connected in a way that allows the changes of the directions of the fence at 90ο


POSTS : Technical Specifications

Height 1,50 m 2,00 m 2,50 m
Gauge 2,00 mm
Galvanized 0,50 (oz/ft²)
Polyester Thickness 100 microns (4 mils aprox.)
Dimensions 60 x 60 mm
Colours White – Black – Green – Red – Yellow – Blue – Grey- Galvanized

For special orders, there is the possibility to offer the above materials, in a variety of dimensions, according to the requirements of each project.
